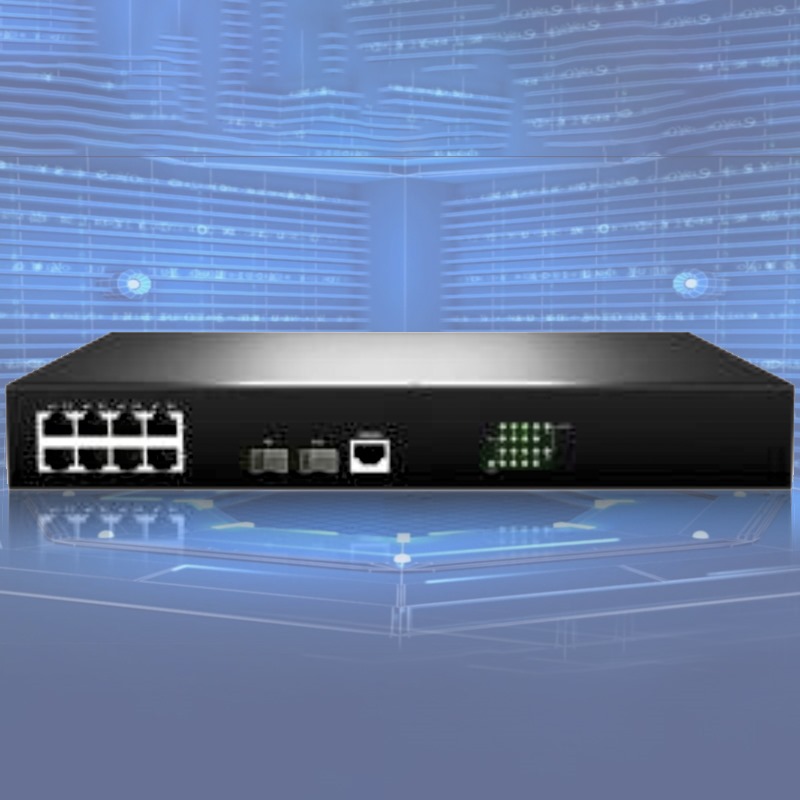

Cx2010P Gigabit Managed Switch
Product Code: P-109
The Cx2010P switch is a Gigabit Ethernet access switch with two 1G SFP uplink ports. The switch is an ideal Gigabit PoE access switch for SMB, enterprise, and campus networks. The switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge. The Cx2010P series is ideal as an access PoE switch for enterprise or campus access networks supporting up to 120-Watt POE power budget.
• 8x 1G RJ-45 PoE+ Ports
• 2x 1G SFP Ports
• 2x 1G SFP Ports
| Items | Cx2010p |
|---|---|
| PORT |
10/100/1000M BASE-T RJ45: 8 ports 1G SFP: 2 ports GE out-of-band management ports: 1 Console RJ45 ports: 1 Power over Ethernet: IEEE802.3af/at, 120W power budget |
| Performance |
Flash memory: 32MB DDRIII capacity: 128MB MAC address table size: 8K ARP table size: 1K Jumbo frames: 9KB Switching capacity: 20Gbps Auto-negotiation: Yes Auto-MDI/MDIX: Yes |
| Power supply |
Input range: 53V/1.5A System power consumption: 150W |
| LED |
Port LED: Green: link/active Yellow: speed Yellow: PoE |
| Mechanical | Dimension (W x D x H) mm: 320 * 208 * 43.6 |
| Environment |
Operating Temperature: 0° to 50°C Storage Temperature: -40° to 70°C Operating Humidity (non-condensing): 10% to 90% Storage Humidity (non-condensing): 10% to 90% |
| Certifications |
FCC Class A: Yes CE: Yes Safety Compliance: CB Safety Compliance: UL |
| Items | Cx2010P |
|---|---|
| VLAN |
4K VLANs IEEE 802.1Q VLAN Port-based VLANs Protocol-based VLANs IP subnet-based VLANs MAC-based VLANs QinQ |
| Link aggregation |
Static Link Aggregation IEEE 802.3ad LACP IP address and MAC address-based load balancing policies |
| Redundancy Protocols |
Stopp/Rustop/Meestep Flex Link Monito Link Distal loop detection |
| ACL |
Standard and Extended ACLs TimeRange-based ACLs Traffic classification and flow definition based on IP header information, such as source/destination MAC addresses, VLANs, 802.1p, ToS, DiffServ, source/destination IP addresses, TCP/UDP port numbers, and protocol types IPv4/IPv6 ACL |
| QOS |
Limit the speed of receiving and sending packets based on ports or custom streams Packet/mirroring and redirection based on port or custom streams Priority marking based on port or custom streams, and providing remark capability for 802.1P and DSCP priorities Advanced queue scheduling based on port or custom streams, providing eight priority queues per port, providing queue scheduling algorithms such as SP, WRR, SP+WRR |
| IGMP |
IGMPv1/v2/v3 Snooping IGMP Filter MVR multicast VLAN registration and cross-VLAN multicast replication IGMP Fast leave |
| Port Control |
Broadcast/Multicast/Unknown Unicast Storm Control Bidirectional band width control of the port Port mirroring Realtime traffic statistics, utilization, and packet sending and receiving statistics on ports 9K Jumbo ultra-long frame forwarding |
| Security |
ARP-spoofing ARP-flooding IP-Source-Guard Port isolation MAC address binding to port and port MAC address filtering IEEE 802.1x User Port and MAC Authentication RADIUS/TACACS+ Defend against DoS attacks and virus attacks SSHv2 Secure Shell SNMP v3 Telnet login and password mechanism for Security IP Hierarchical user protection to prevent unauthorized users from unauthorized intrusion Filter unicast/broadcast based on the MAC address of each user ARP packet suppression or user blocking based on ARP traffic detection Manually bind parameters such as IP address, VLAN ID, MAC address, and port L2-L7 ACL flow filtering Port broadcast/multicast packet suppression and automatic shutdown of dangerous ports DHCP option 82 and PPPoE+ tags upload the user's physical location information DHCP-Snooping |
| IPv6 | IPv4/IPv6 Dual Protocol Stack, HTTPoerIPv6, SSH overIPv6, Telnet |
| Management |
CLI, Console, Telnet, and SSH configuration management WEB Management SNMPv1/v2/v3 management RMON (Groups 1, 2, 3 & 9) MIB II DHCP Client FTP/TFTP SNTP LLDP Ethernet OAM (802.3ah EFM and 802.1agCFM) Ping, Traceroute Syslog |
| Model | Description |
|---|---|
| Cx2010p | 8-port RJ45 + 2-port SFP Full Gigabit Ethernet Switch with PoE/PoE+. |
Note:
Access /Aggregation Switch
Technical Specification: Technical Specification
