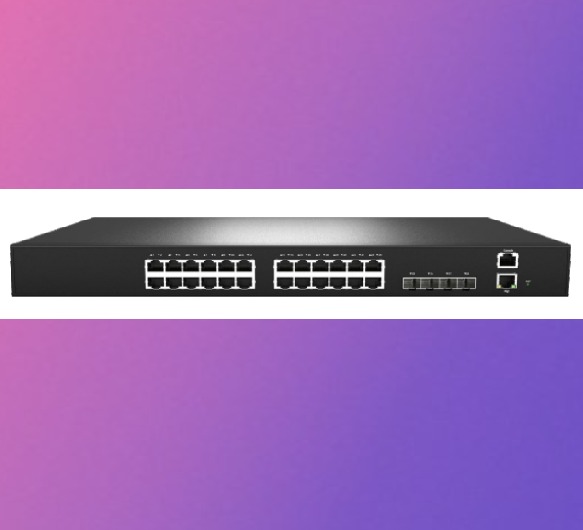

Cx4028E 10G L2+ Switch
Product Code: 119P
The Cx4000E series is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. It is also an ideal Gigabit access switch series for SMB, enterprise, and campus networks. The Cx4028E is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
• 24x 1G RJ-45 Ports
• 4x 10G SFP+
• Dual redundant Power supply
| Items | Cx4028E |
|---|---|
| 10/100/1000M BASE-T RJ45 | 24 ports |
| 1GSFP | N/A |
| 10G SFP+ | 4 ports |
| GE out-of-band management ports | 1 |
| Console RJ45 ports | 1 |
| Power over Ethernet | N/A |
| Performance | |
| Flash memory | 64M Byte |
| DDRIII capacity | 512M Byte |
| MAC address table size | 16K |
| ARP table size | 1K |
| Jumbo frames | 9KB |
| Switching capacity | 128Gbps |
| Auto-negotiation | Yes |
| Auto-MD/MDIX | Yes |
| Power Supply | |
| Input range | 100-240VAC Redundant dual power |
| System power consumption | 24W |
| LED | |
| Port LED | Green: link/active |
| Mechanical | |
| Dimension (W x D x H) mm | 440*280*44 |
| Environment | |
| Operating Temperature | 0° to 50°C |
| Storage Temperature | -40° to 70°C |
| Operating Humidity (non-condensing) | 10% to 90% |
| Storage Humidity (non-condensing) | 10% to 90% |
| Certifications | |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: CB | Yes |
| Safety Compliance: UL | Yes |
| Items | Cx4028E |
|---|---|
| VLAN |
IEEE 802.1Q VLAN; IEEE 802.1v Protocol-based VLAN; Port-based VLAN; IP Subnet-based VLAN, MAC-based VLAN, Voice VLAN; GVRP; QinQ |
| Link aggregation |
Static link aggregation; IEEE 802.3ad with LACP; Unicast/Multicast load balance over trunk port |
| Redundancy Protocols | ERPSv1; STP/RSTP and MSTP |
| ACL |
L3/L4, Statistics ACL; VLAN ACL, Global ACL; IPv4/IPv6/MAC/ARP ACL |
| QOS |
Traffic Classification (802.1p/ToS/port/DiffServ); SP, WRR, SP+WRR; 8 queues/port of Priority Queues |
| IGMP | IGMP v1/v2/v3, IGMP Snooping |
| Storm Control | Broadcast/Multicast/Unknown Unicast Storm Control |
| Security |
RADIUS / TACACS+, IEEE 802.1X; Port authentication, MAC Authentication bypass; DHCP Snooping (Option 82), IP Source guard, DoS Protection; HTTPS and SSLv3 |
| IPv6 |
IPv4/IPv6 Dual Protocol Stack; IPv6 Neighbor Discovery; IPv6 Neighbor Discovery Snooping; IPv6 DHCP client, IPv6 DHCP Snooping; MVR over IPv6SNMP over IPv6HTTP over IPv6SSH over IPv6Telnet over IPv6 |
| Management |
CLI via console port or Telnet, Web management, SNMPv3; RMON (groups 1, 2, 3 and 9); MIB II; DHCP client, DHCP Relay, DHCP dynamic provision option 66, 67; FTP/SFTP/TFTP client; SNTP/NTP; NTP; LLDP; OAM; UDLD; SMTP; sFlow; MLDv1/v2; MLD snooping; ping; Traceroute; syslog |
| Routing | Static Unicast Routes |
| Model | Description |
|---|---|
| SS200-28TS | 24-port RJ45 + 4-port SFP+ 10 Gigabit Ethernet Switch, Redundant dual power. |
