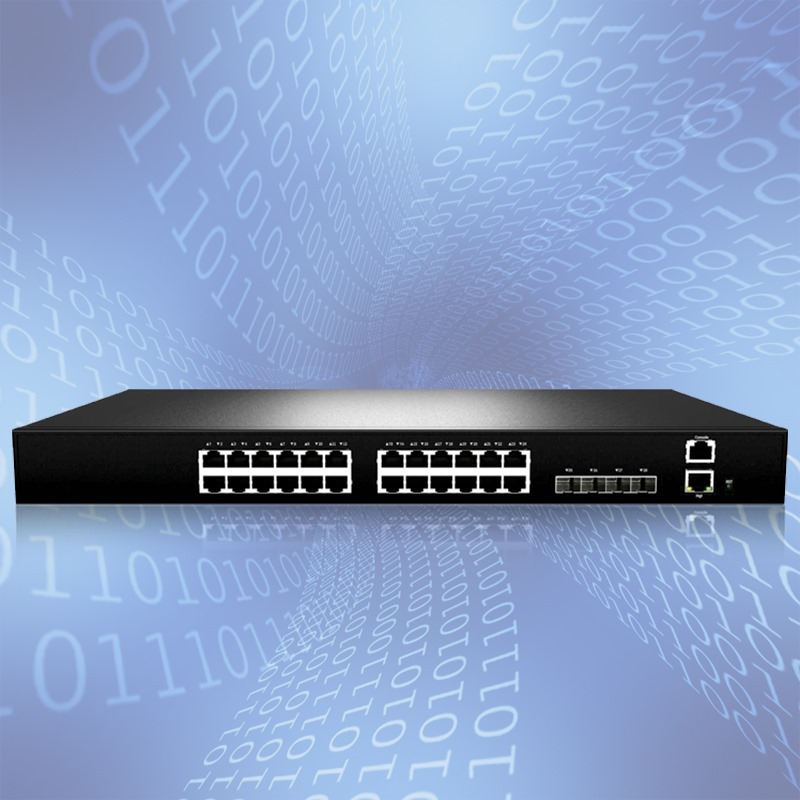

Cx4028P 10G L2+ POE Switch
Product Code: P-109
Designed for enterprise
applications, the Cx4000 series are high-performance Gigabit Ethernet access
switches, featuring between 28 and 54 ports.
The Cx4000 series is
ideal as an access PoE switch for enterprise or campus access networks
supporting up to 370-Watt POE power budget, the switch includes redundant,
hot-swappable AC Power supply
These full line-rate L2/L3 access switches provide flexible network solutions suitable for a range of applications, including the enterprise market, campus networks, and Wi-Fi access point deployment.
§ 24x 1G RJ-45 PoE+ Ports
§ 4x 10G SFP+ Ports
§ 370 Watts POE Power budget
§ Dual redundant Power Supply
| Items | Cx4028P |
|---|---|
| 10/100/1000M BASE-T RJ45 | 24 ports |
| 1G SFP | NA |
| 10G SFP+ | 4 ports |
| GE out-of-band management ports | 1 |
| Console RJ45 ports | 1 |
| Power over Ethernet | EEE802.3af/at 370W power budget |
| Flash memory | 256MB |
| DDRIII capacity | 512MByte |
| MAC address table size | 16K |
| ARP table size | 1K |
| Jumbo frames | 9KB |
| Switching capacity | 128Gbps |
| Auto-negotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Input range | 100-240VAC, 50-60Hz |
| Plugabble Dual Power | Yes |
| System power consumption | 450W |
| Port LED | Green: Link/Active Yellow: PoE |
| Dimensions (WxDxH) mm | 440 x 330 x 44 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity (non-condensing) | 10% to 90% |
| Storage Humidity (non-condensing) | 10% to 90% |
| FCC Class | A |
| CE | Yes |
| Safety Compliance: CB | Yes |
| Safety Compliance: UL | Yes |
| Items | Cx4028P |
|---|---|
| VLAN |
IEEE 802.1Q VLAN; IEEE 802.1v Protocol-based VLAN; Port-based VLAN; IP Subnet-based VLAN, MAC-based VLAN, Voice VLAN; GVRP; QinQ |
| Link aggregation |
Static link aggregation; IEEE 802.3ad with LACP; Unicast/Multicast load balance over trunk port |
| Redundancy Protocols | ERPSv1; STP/RSTP and MSTP |
| ACL |
L3/L4, Statistics ACL; VLAN ACL, Global ACL; IPv4/IPv6/MAC/ARP ACL |
| QoS |
Traffic Classification (802.1p/ToS/port/DiffServ); SP, WRR, SP+WRR; 8 queues/port of Priority Queues |
| IGMP | IGMP v1/v2/v3, IGMP Snooping |
| Storm Control | Broadcast/Multicast/ Unknown Unicast Storm Control |
| Security |
RADIUS / TACACS+; IEEE 802.1X; Port authentication, MAC Authentication bypass; DHCP Snooping (Option 82), IP Source guard, DoS Protection; HTTPS and SSLv3 |
| IPv6 |
IPv4/IPv6 Dual Protocol Stack; IPv6 Neighbor Discovery; IPv6 Neighbor Discovery Snooping; IPv6 DHCP client, IPv6 DHCP Snooping; MVR over IPv6, SNMP over IPv6, HTTP over IPv6, SSH over IPv6, Telnet over IPv6 |
| Management |
CLI via console port or Telnet, Web management, SNMPv3; RMON (groups 1, 2, 3 and 9); MIB II; DHCP client, DHCP Relay, DHCP dynamic provision option 66,67 FTP/SFTP/TFTP client; SNTP/NTP; NTP; LLDP; OAM; UDLD; SMTP; sFlow; MLDv1/v2; MLD snooping; ping; Traceroute; syslog |
| Routing | Static Unicast Routes |
| Model | Description |
|---|---|
| Cx4028P | 24-port RJ45 + 4-port SFP+ 10 Gigabit Ethernet Switch with PoE/PoE+, dual redundant power supply. |
Note:
Access /Aggregation Switch
