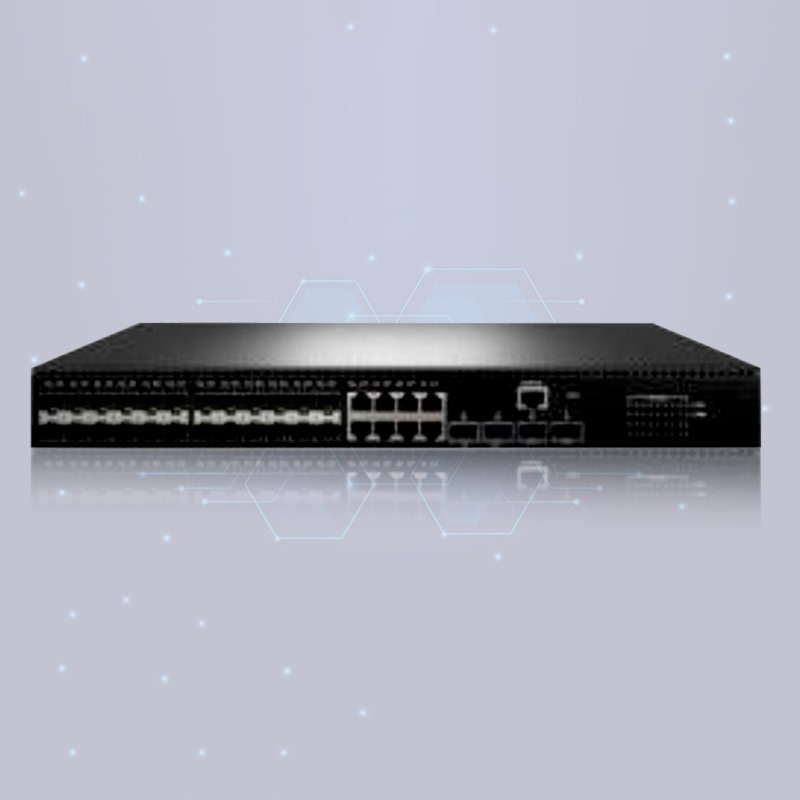

Cx4536F- 10G Aggregation Switch
Product Code: P-109
The Cx4500 series switches are designed for aggregation applications. It meets the high-performance, availability, and network-scaling requirements of enterprise and telecom vertical. The Cx4536F provides full line-rate switching at Layer 2 or Layer 3 across 24x 1GbE ports and 4 x 10GbE uplinks. The Cx4500 series hardware provides the high availability features required for network operation, including redundant, hot-swappable AC Power supply.
• 24x 1G SFP Ports
• 8x 1G RJ45 Ports
• 4x 10G SFP+ Port
• Dual redundant Power supply
| Items | Cx4536F |
|---|---|
| PORT | |
| 10/100/1000M BASE-T RJ45 | 8 ports |
| 1GSFP | 24 ports |
| 10GSFP+ | 4 ports |
| GE out-of-band management ports | 1 |
| Console RJ45 ports | 1 |
| Power over Ethernet | N/A |
| Performance | |
| Flash memory | 256M Byte |
| DDRIII capacity | 512M Byte |
| MAC address table size | 32K |
| ARP table size | 1K |
| Jumbo frames | 12KB |
| Switching capacity | 144Gbps |
| Auto-negotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Power supply | |
| Input range | 100-240VAC |
| System power consumption | 60W |
| Redundant dual power | Yes |
| LED | |
| Port LED | Green: link/active |
| Mechanical | |
| Dimension (W x D x H) mm | 442 x 280 x 43.6 |
| Operating Temperature | 0° to 50°C |
| Storage Temperature | -40° to 70°C |
| Environment | |
| Operating Humidity (non-condensing) | 10% to 90% |
| Storage Humidity (non-condensing) | 10% to 90% |
| Certifications | |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: CB | Yes |
| Safety Compliance: UL | Yes |
| Items | Cx4536F |
|---|---|
| VLAN | IEEE 802.1Q VLAN |
| IEEE 802.1v Protocol-based VLAN | |
| Port-based VLAN | |
| IP Subnet-based VLAN, MAC-based VLAN, Voice VLAN | |
| QinQ | |
| QVRP | |
| Link aggregation | Static link aggregation |
| IEEE 802.3ad with LACP; Unicast/Multicast load balance over trunk port | |
| Redundancy Protocols | ERPSv1/v2 |
| STP/RSTP and MSTP | |
| 1:1/1:4 Statistics ACL | |
| ACL | VLAN ACL, Global ACL |
| IPv4/IPv6, MAC/APR ACL | |
| QOS | Traffic Classification (802.1p/ToS/port/DiffServ) |
| 8 queues/port of Priority Queues | |
| IGMP | IGMP v1/v2/v3, IGMP Snooping |
| 8 SP, WRR, SP+WRR | |
| Storm Control | Broadcast/Multicast/ Unknown Unicast Storm Control |
| Security | RADIUS/TACACS+, IEEE 802.1X |
| Port authentication, MAC Authentication bypass | |
| DHCP Snooping (Option 82), IP Source guard, DoS Protection | |
| HTTPS and SSL | |
| IPv6 | |
| Management | IPv4/IPv6 Dual Protocol Stack |
| IPv6 Neighbor Discovery | |
| IPv6 Neighbor Discovery Snooping | |
| IPv6 DHCP client, IPv6 DHCP Snooping | |
| MVR over IPv6 SNMP over IPv6 HTTP over IPv6 SSH over IPv6 Telnet over IPv6 | |
| CLI via console port or Telnet, Web management, SNMPv3 | |
| MRON (groups 1, 2, 3, and 9) | |
| MIB I, II | |
| L2 Features | DHCP client, DHCP Relay, DHCP dynamic provision option 66,67 |
| FTP/SFTP/TFTP client | |
| SNT, NTP | |
| RMON | |
| Syslog | |
| UDLD | |
| LACP | |
| SMTP | |
| SFLOW | |
| L3 Features | MLDv1/v2 |
| MLD Snooping | |
| Tracroute | |
| Ping | |
| Single Unicast Routes | |
| Routing | OSPF |
| Model | Description |
|---|---|
| CX4536F | 8-port RJ45 + 24-port SFP + 4-port SFP+ 10 Gigabit Ethernet Switch, Redundant dual power. |
Note:
Cx4536F 10G L3-Light Managed Aggregation Switch
Technical Specification: Technical Specification
