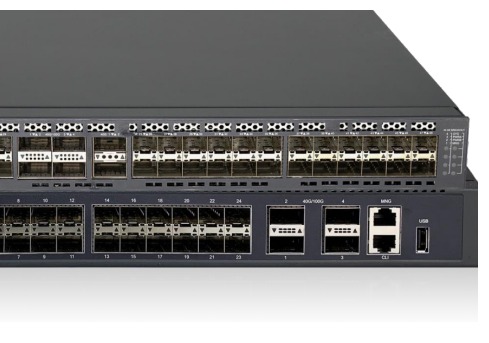

Cx5000 Series
Product Code: 120P
Cx5000 Series is a new generation of full-10GE TOR switches, oriented for high-performance computing, data center and high-end campuses. The Cx5000 Series adopts our most advanced hardwarearchitecturedesigns. Cx5000 Series (1U height) supports up to 2.56Tbpsswitching capacity and 48 10GE ports + 2 40GEports + 4 100G ports or 72 10GE ports. This Series provides high-performance L2/L3/L4 wire speed switching capacity by integrating services such as IPv6, VPN, network security, flow analysis, virtualization, with high reliable techniques.
Improved Performance: The Virtual Switching System
makes full use of each link in the physical device
cluster, which avoids STP blocking on links and protects
the original link to the maximum;
High Reliability: Based on the advanced distribution
mechanism and effi cient cross - physical link
aggregation function, the logic control plane, service
control plane and service data plane are separated.
Thus, the device can support continuous layer3 routing
forwarding, avoiding service interruption as a result of
a single point of failure;
| Item | Cx5028 | Cx5054 |
|---|---|---|
| Interface | 20*10GE/GE SFP+ ports, 4x10G combo, 4*100GE/40GE QSFP28 ports | 48*10GE/GE SFP+ ports, 2*40GE QSFP+ ports, 4*100GE/40GE QSFP28 ports |
| Console | 1 RJ45 console, 1 MGMT | 1 RJ45 console, 1 MGMT |
| Backplane Switching Capacity | 800Gbps | 1920Gbps |
| Forwarding rate (64 Bytes) | 600Mpps | 1440Mpps |
| Chassis Dimensions (WxDxH) (mm) | 440x350x44 | 442x404x44 |
| Weight (KG) (empty) | 7.1 | 8.8 |
| Package Dimensions (WxDxH) (mm) | 576x448x94 | 616x488x140 |
| Package Weight (KG) | 8.3 | 10 |
| Power no-load | 45W | 102W |
| Power consumption full-load | 70W | 147W |
| Powersupply AC: 100V-240V, (hot-swap) 50Hz±10% | 2 | 2 |
| Power status monitoring | Support | Support |
| Total output BTU (1000BTU/H=293W) | 238.91 | 501.71 |
| Fan number | 4 | 4 |
| Noise@25°C (dBA) | 57 | 57 |
| MTBF(H) | >200,000 | >200,000 |
| Forwarding mode | Store-forward | Store-forward |
| Flash (MB) | 64 | 64 |
| DRAM (MB) | 1024 | 1024 |
| MAC | 64K | 64K |
| Jumbo frame | 16K | 16K |
| Routing table IPv4 | 16K | 16K |
| Routing table IPv6 | 12K | 8K |
| ARP table IPv4 | 10K | 16K |
| ARP table IPv6 | 10K | 2K |
| Total SVI | 1K | 1K |
| VLAN | MPLS | QoS | Reliability |
|---|---|---|---|
|
4K Active VLAN, QinQ (Double VLAN) & SelectiveQinQ, GVRP, Private VLAN 802.1Q Tagged VLAN & configurable VLAN ID 0~4094 VLAN Trunking Port based VLAN, Voice VLAN Loop Guard |
Multi-VRF |
CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS, 802.1P (Port base, MAC base, VLAN, Ether type, TCP/UDP port number, IP address, IPv6 traffic class & Flow label) DSCP priority re-labeling, SPQ, WRR, and *SPQ+WRR*, WDRR, Tail - Drop Max 8 queue per port WREDflow monitoring and traffic shaping |
802.3ad Static/LACP link aggregation, Interface backup VSF virtual-stacking EAPS and ERPS URPF, LLDP ISSU VRRP v2, v3 LLDP 1+1 power backup |
| Spanning Tree | Security | Management | Environment |
|
802.1D(STP) 802.1W (RSTP) and 802.1S (MSTP) BPDUguard, rootguard and loopbackguard |
Port isolation, Port security, and *IP+MAC+port* binding, MAC sticky DHCP Snooping and option 82, DAI & IP source guard, PPPoE+. IEEE 802.1x, port base, host base and MAC base authentication RADIUS and TACACS+ L2/L3/L4 ACL (port base, MAC base, IP address base, VLAN, Ether type, TCP/UDP port number, IPv6 traffic class & flow base) Flow identification and filtrationAnti-attack from DOS/DDoS, TCP’s SYN Flood, UDP Flood,etc.Broadcast/multicast/unk nown unicast storm-control Port Security (1200 MAC per port) MD5, SHA-256, RSA-1024, AES256, etc. |
Console, Telnet, SSH v1/v2, SSL, WEB GUI, HTTP/HTTPS SNMP v1/v2/v3, RMON TFTP, FTP, SFTP NTP, SPAN, RSPAN sFlow SNMP v1/v2/v3 traps |
Operating temperature/humidity: 0°C - 50°C , 10%-90% non-condensing Storage temperature/humidity: -20°C -70°C , 5%-95% non-condensing |
| Multicast | IPv4 | IPv6 | Certification |
|
PIM-SM, PIM-DM, IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter |
Static routing, RIP v1/v2, OSPF, BGP, PBR, ECMP BFD for OSPF, BGP BFD IP Interface Loopback Interface Default route Policy based route |
ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet IPv6 neighbor discovery, Path MTU discovery MLD snooping IPv6 Static Routing, RIPng, OSPFv3, BGP4+ Manual tunnel, ISATAP tunnel, 6 to 4 tunnel IPv6 ND inspection Duplicate address detection (DAD) |
CE, FCC, ROHS |
