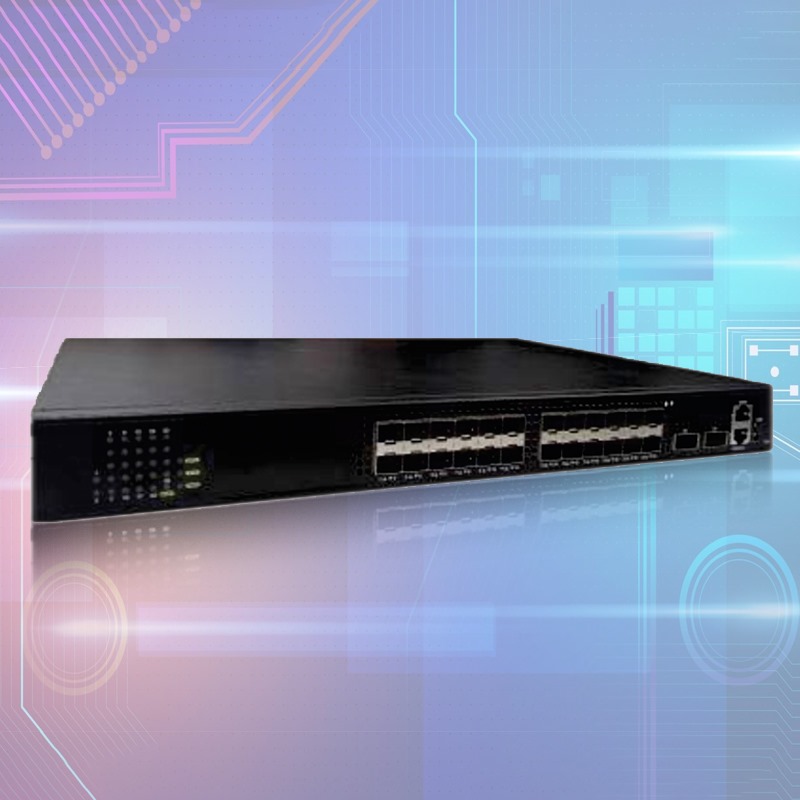

Cx5026- 40G L3 Core Switch
Product Code: P-103
Cx5000 series is a high-performance 40GbE Top-of-Rack (TOR) and enterprise grade switch series. It is designed for high-performance clusters computing and high-frequency triple play (Video, Voice & Data) applications, supporting 10 GbE to servers with 40GbE uplinks, or as a core switch supporting 40/10GbE spine interconnects. The Cx5026 is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, as well as static routing and dynamic routing capability.
• 24x 10G SFP+ Ports
• 2x 40G QSFP+ Ports
• Dual redundant Power Supply
• Dynamic routing and static routing
• Supported TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSHv2
• Supported ERPSv1, STP/RSTP and MSTP
• Easy network management by web browser, CLI, Telnet/serial console
| Items | Cx5026 |
|---|---|
| 10/100/1000M BASE-T RJ45 | N/A |
| 1G SFP | N/A |
| 10G SFP+ | 24 ports |
| 40G QSFP28 | 2 ports |
| GE out-of-band management ports | 1 |
| console RJ45 ports | 1 |
| USB 2.0 | 1 |
| Power over Ethernet | N/A |
| Switching capacity | 640Gbps |
| Forwarding Rate | 480Mpps |
| MAC Address | 32K |
| ACL Table | 3K (ingress) + 1K (egress) |
| VLANTable | 4K |
| Jumbo Frame | 12K |
| Queues per port | 8 |
| Input range | AC: 100~240VAC, 50~60Hz DC: Input -60V ~ -40V redundant power supplies |
| System power consumption | 70W |
| Dimension (W x D x H) mm | 440x320x44mm |
| Operating Temperature | 0° to 50°C |
| Storage Temperature | -40° to 70°C |
| Operating Humidity (non-condensing) | 10% to 90% |
| Storage Humidity (non-condensing) | 10% to 90% |
| RoHS | Yes |
| CE | Yes |
| Items | Cx5026 |
|---|---|
| VLAN | IEEE 802.1Q VLAN |
| IEEE 802.1v Protocol-based VLAN | |
| Port-based VLAN | |
| 1P Subnet-based VLAN, MAC-based VLAN, Voice VLAN | |
| 1:1 and N:1 VLAN Mapping | |
| QinQ | |
| Link aggregation | Static link aggregation LACP, static load balance over trunk port |
| Redundancy Protocols | ERPS |
| STP/RSTP and MSTP | |
| ACL | L2/L3/L4 ACL, Statistics ACL |
| IPv4/IPv6/MAC/ARP ACL | |
| Time-based ACL | |
| QoS | 8 Queues Per Port |
| Bandwidth Control | |
| Priority Re-mark Based on ACL, VLAN ID, COS, TOS, DSCP, IPv6 Flow Label | |
| Rate Limiting Based on Port and VLAN | |
| Single Rate Three Colors, Dual Rates Three Colors for Policing | |
| Storm Control for Broadcast, Multicast, Unknown Unicast | |
| SP, WRR, DWRR, SP+WRR for Scheduling | |
| MRP, SVRP, SWRP | |
| ICMP | IPv4, IPv6, IGMP, MLD |
| Security | RADIUS / TACACS+, IEEE 802.1X |
| Port Authentication, MAC Authentication Bypass | |
| DHCP Snooping, DHCP Option 82, IP Source Guard | |
| HTTPS and SSL | |
| IPv6 | IPv4/IPv6 Dual Protocol Stack |
| IPv6 Neighbor Discovery, DHCPv6 | |
| ICMPv6, DHCPv6 Relay | |
| IPv6 SNMP over IPv6 HTTP over IPv6 SSH over IPv6 Telnet over IPv6 | |
| IPv6 DNS Resolver, Web Management, SNMPv2/3 | |
| IPv6 TFTP/FTP Client | |
| IPv6 RADIUS | |
| Management | SSH, RMON |
| HTTP, HTTPS, FTP, DHCP Relay, DHCP Option 82 | |
| SNMPv1/v2/v3 | |
| CLI, Telnet, Web Management | |
| DHCP Client, DHCP Relay | |
| TFTP/FTP/TFTP Client | |
| NTP, Syslog | |
| UDP Helper | |
| SFLOW, MLDv1/2 | |
| Routing | IPv4/IPv6 Static Routing |
| RIP v1/2, OSPF, BGP | |
| ECMP Routing, Policy-based Routing |
| Model | Description |
|---|---|
| Cx5026 | 24-port SFP+ 2-port QSFP+ 40 Gigabit Ethernet Switch. AC: 100-240VAC, 50~60Hz. DC: Input -60V ~ -40V, redundant power supplies. |
